Features 1. No backlight, keeps displaying last content for a long time even when power down 2. Ultra low power consumption, basically power is only required for refreshing 3. SPI interface, requires minimal IO pins 4. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

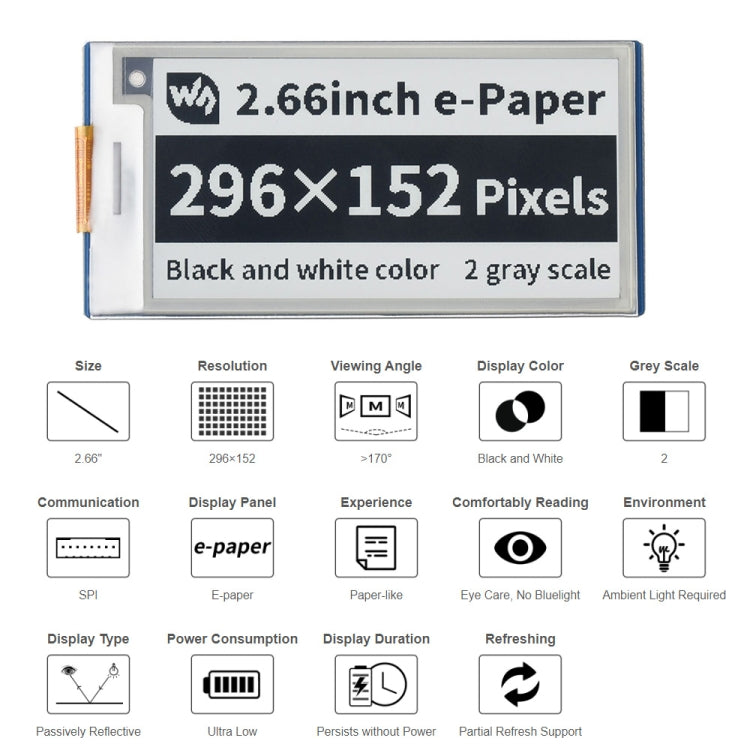

Specification 1. Operating voltage: 3.3V 2. Display color: Black, white 3. Resolution: 296 x 152 pixels 4. Grey scale: 2 5. Interface: 3-wire SPI, 4-wire SPI 6. Viewing angle: Greater than 170 degree 7. Partial refresh time: 0.3s 8. Full refresh time: 2s 9. Dimensions: 74.00 x 37.50mm 10. Display size: 60.088 x 30.704mm 11. Refresh power: 42.4mW(typ.) 12. Standby current: Less than 0.01uA (almost none) 13. Dot pitch: 0.203 x 0.202mm
Package List 1. Pico-ePaper-2.66 x1 2. Standoff pack x1
