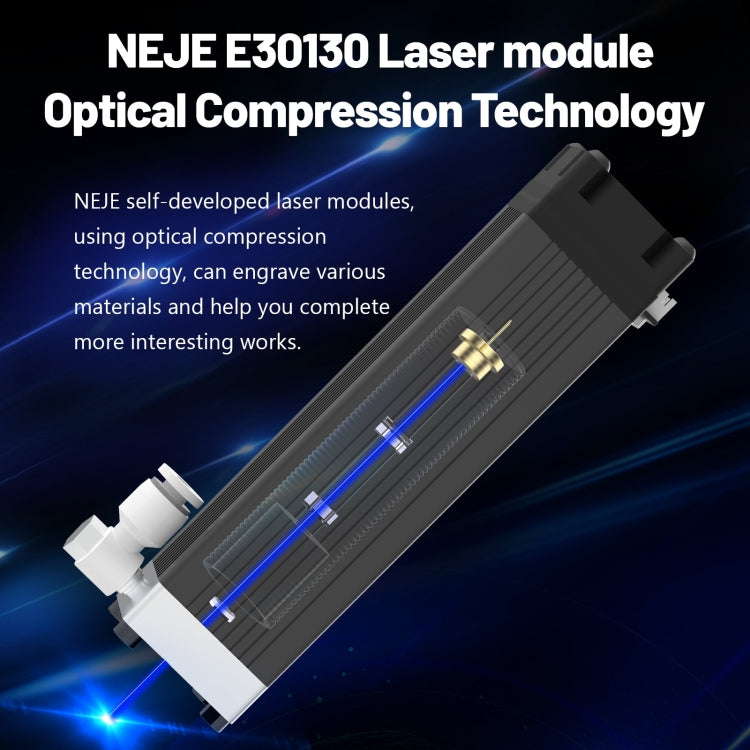

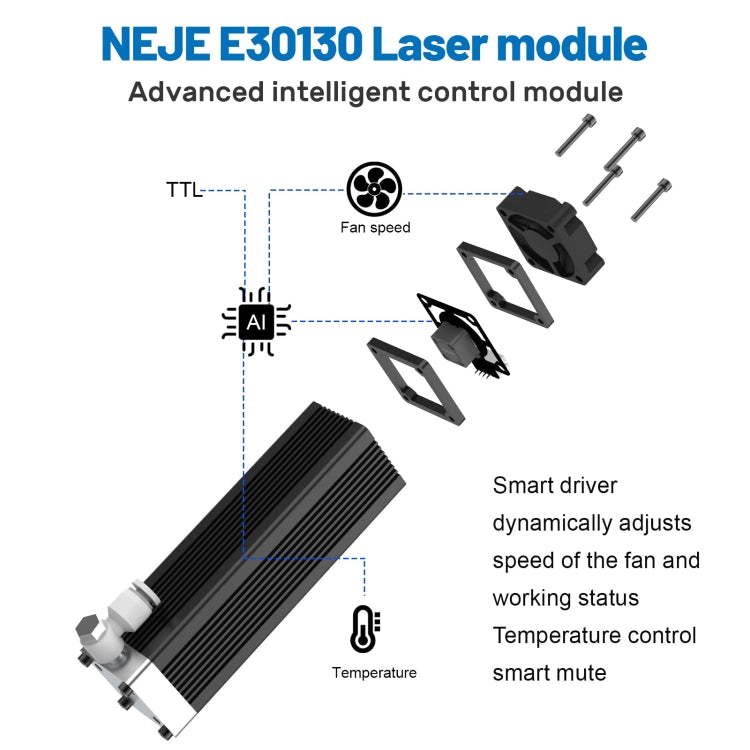

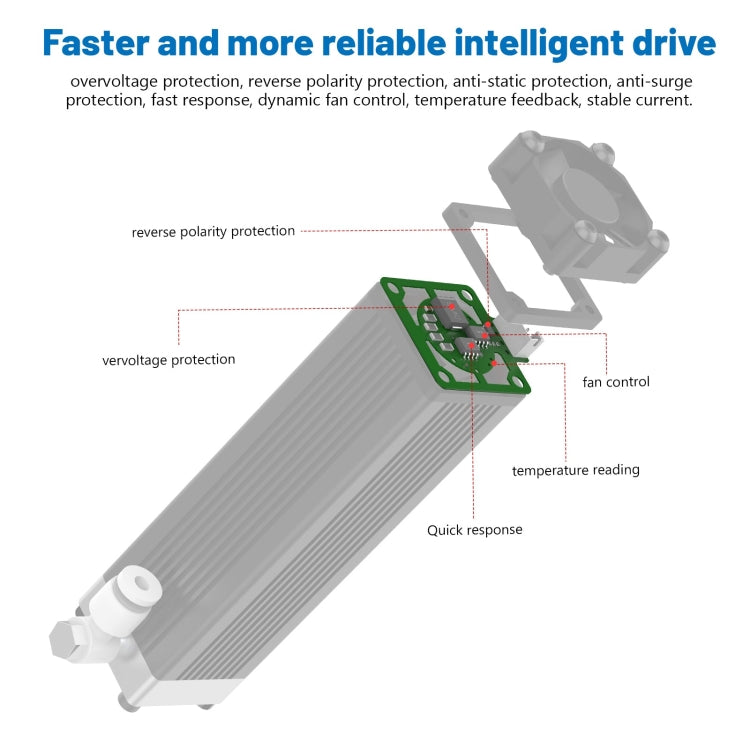

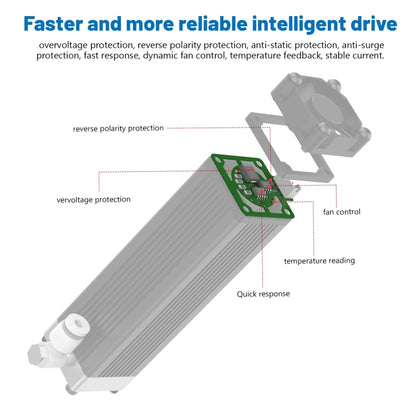

1. Cylindrical lens optical compression technology 2. Fixed focus 3. Thread enhanced heat dissipation process 4. Intelligent drive, silent design 5. Anti-surge and anti-static design 6. Equipped with inner cavity air-assisted design, supporting 1.5MPa clean air pressure 7. Double ball high-speed cooling fan design, super durable life

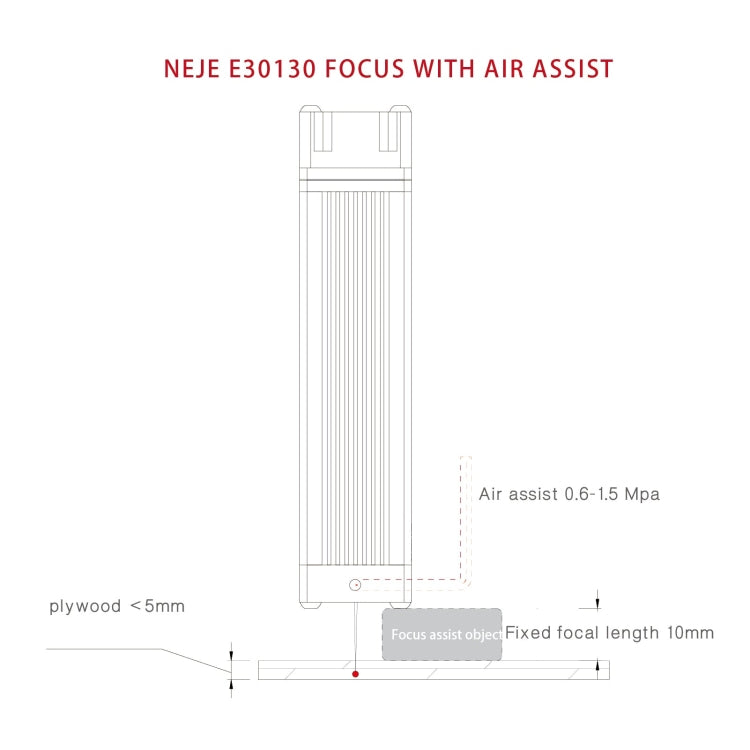

Specification 1. Focus: 0.05x0.05mm 2. Focus method: fixed ( about 10mm from the bottom ) 3. Optical power: CW 5.5W+, Pulse 7.5W 4. Wavelength: 450nm 5. Weight: 210g 6. Module Size: 30x30x130 mm 7. Input: DC 12V 3A 8. Interface: 4Pin PH2.0 9. Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 3 Plus, NEJE 2s Max, NEJE 2s Plus, etc... 10. Power Control: PWM Power Modulation 11. Temperature control: 45 degrees Celsius

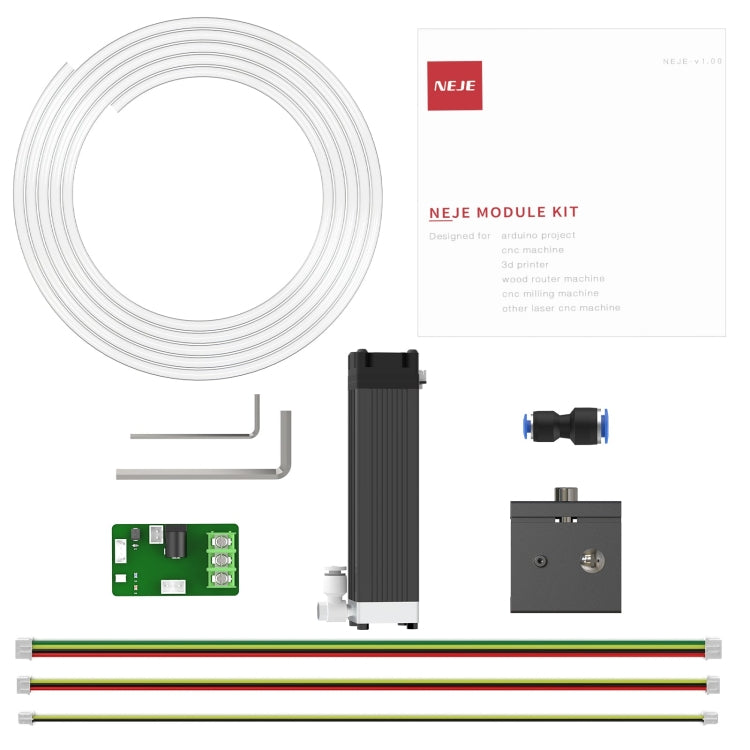

Package Included 1 x Laser Engraving Module 1 x Sliding fixture 1 x 4 Pin Cable(30cm) 1 x 2pin yellow and black signal cable + 3pin input cable 1 x NEJE Interface adapter board 1 x 2.5mm L-shaped wrench 1 x 5mm L-shaped wrench 1 x Air Assist
