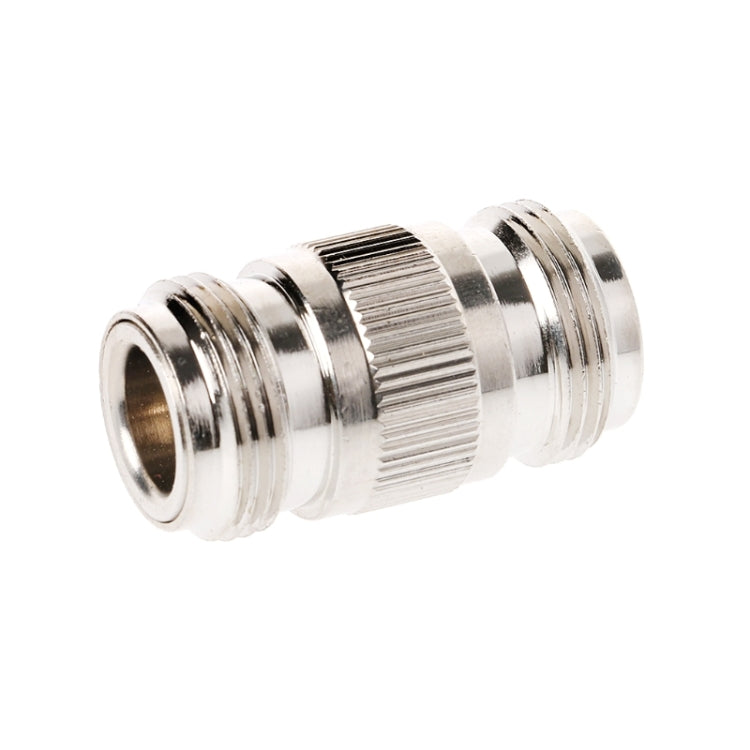

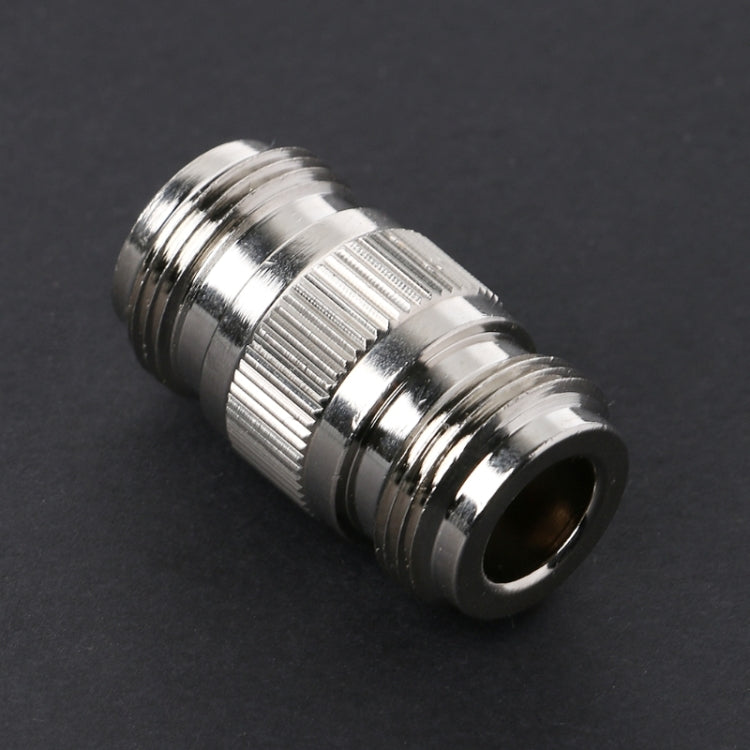

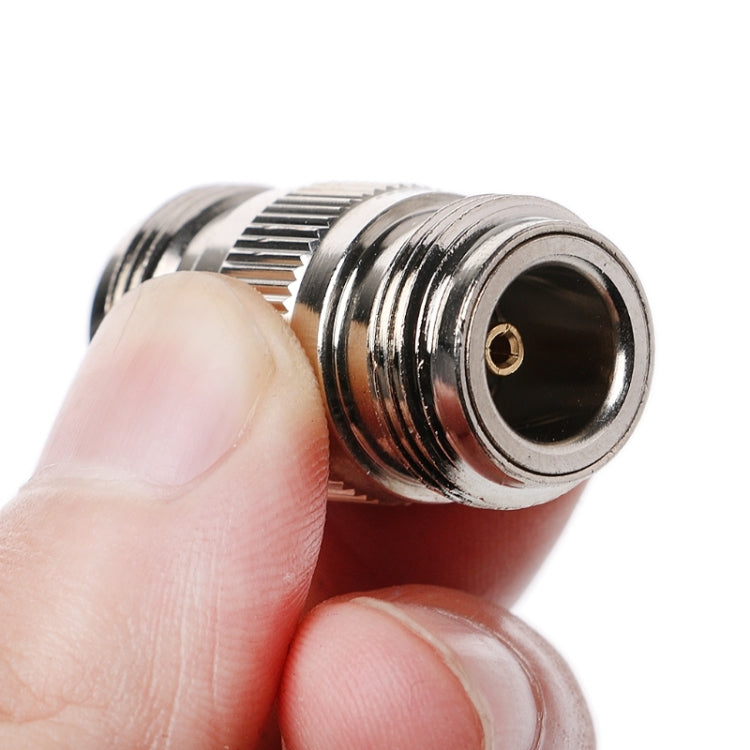

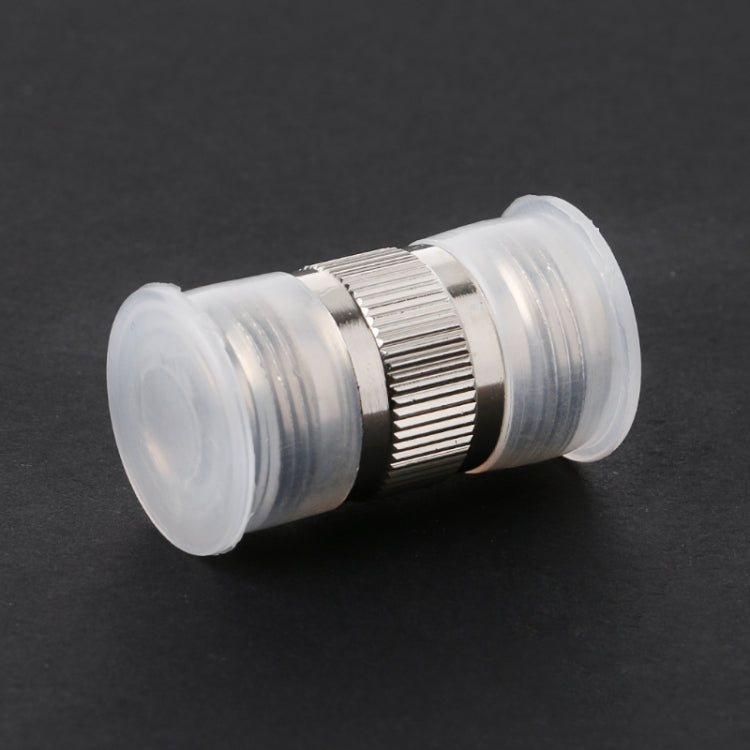

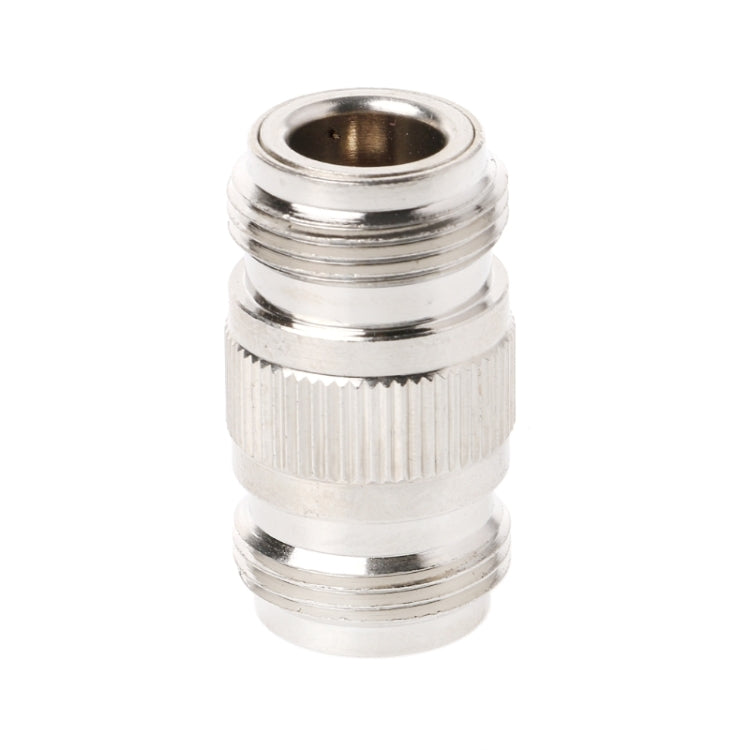

Features: 1. The N model is a small and medium power connector with a threaded connection with a characteristic impedance of 50 ohms 2. The utility model has the advantages of high reliability, strong vibration resistance, good mechanical and electrical performance, etc. 3. Widely used in vibration and harsh environment of radio instruments, communication equipment, microwave test systems and launch ground to connect RF coaxial cable. 4. Using high precision semi rigid and semi flexible cable, frequency up to 11 GHz, and to get a smaller voltage

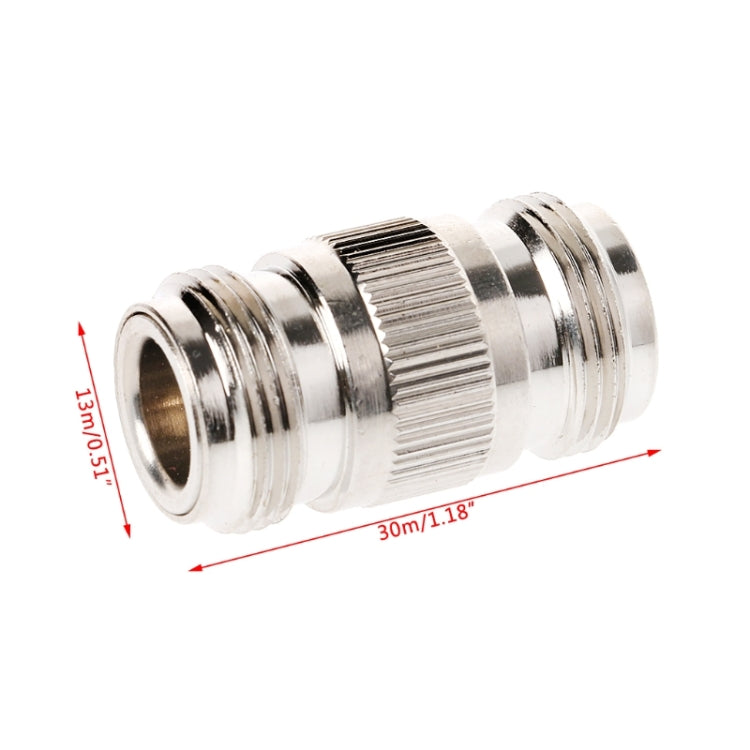

Technical specifications: 1. Temperature range: -55 to + 155 degree 2. Vibration: 100 m / s2 (10 - 500Hz), 10g 3. Characteristic impedance: 50 ohm 4. Frequency range: DC 11 GHz 5. Operating voltage: 1000Vr. m. s 6. Holding voltage: 2500Vr. m. s 7. Material: Copper 8. Size: approx. 30x13mm / 1.18x0.51 "(LxD) 9. Quantity: 1 Pc
