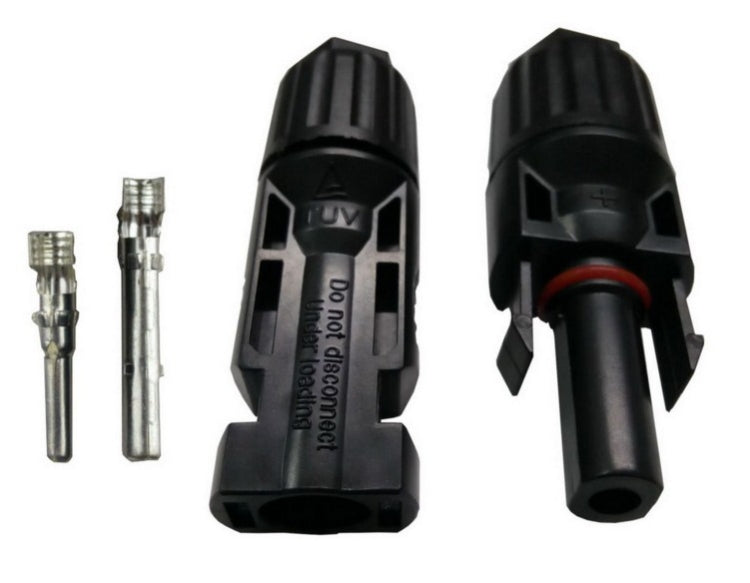

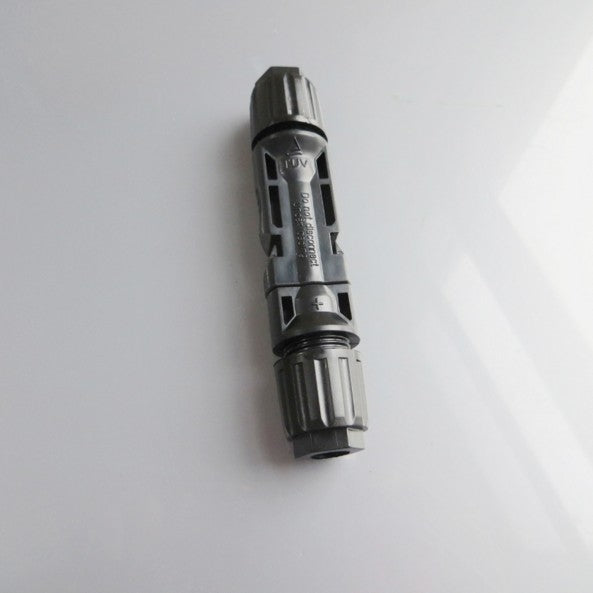

MC4 Connector male female 30A 1000V Solar Panel Branch Series

Name: MC4 Connector male female 30A 1000V Solar Panel Branch Series
Brand: Infinit Tech
SKU: TBD051384801A
Price: 1261.81 ZAR
Availability: InStock

R 1,261.81

Sale Sold out

Shipping calculated at checkout.

Model Number:EU
Connection:Plug In
Output Type:DC
Brand Name:ZOORUI
Usage:Electric Tool
Output voltage:DC1000V
Usage:solar

Specification
Product No:MC4
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A-30A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin dimension:4.0mm
Proof voltage:DC 8KV(1Min)
Pollution degree: 2
Protection class: Class II
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO
Degree of Protection: IP IP67(IEC 60529)
Withdrawal Force: 50N
Insertion Force: 50N
Temperature :-40-+85degree
Flame Class: UL94V - 0
