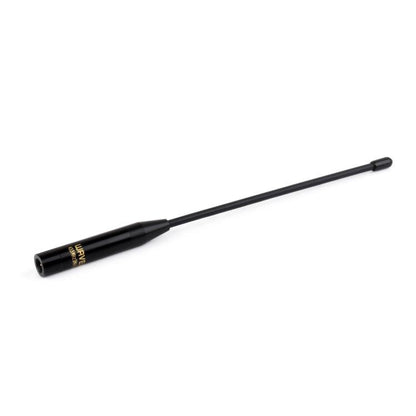

LPWA Omnidirectional Flexible Whip Antenna With SMA Male Connector, Low VSWR, Waveshare 433MHz, Waveshare 868MHz

1. Features an omnidirectional flexible whip structure that supports moderate bending, providing excellent impact resistance to effectively reduce rigid damage during daily installation and collisions.
2. Utilizes a vertical polarization structure paired with a horizontal 360-degree beamwidth, delivering stable, reliable signal transmission and full-coverage connectivity—ideal for fixed wireless nodes and point-to-multipoint terminals.
3. Features high gain and low VSWR (less than or equal to 2), supporting a maximum power input of 10W to significantly enhance signal reception and transmission efficiency.
4. Offers good splash-proof and anti-corrosion performance, withstanding a wide operating temperature range from -40 to 75 degrees Celsius for all-weather outdoor operation in complex environments.
5. Equipped with a standard SMA male connector, widely compatible with IoT devices and wireless transceiver modules operating in LPWA and LoRa 433MHz/868MHz frequency bands.

Product Parameters:
1. Supported Network: LPWA
2. Operating Frequency: 433MHz (410 ~ 510MHz) / 868MHz (850 ~ 885MHz)
3. Antenna Gain: 433MHz: 2.15dBi / 868MHz: 2.5dBi
4. Connector Type: SMA Male (Internal Pin)
5. Output Impedance: 50 ohms
6. Max Input Power: 10W
7. VSWR: Less than or equal to 2
8. Polarization Type: Vertical
9. Antenna Weight: 27g
10. Operating Temperature: -40 to 75 degrees Celsius

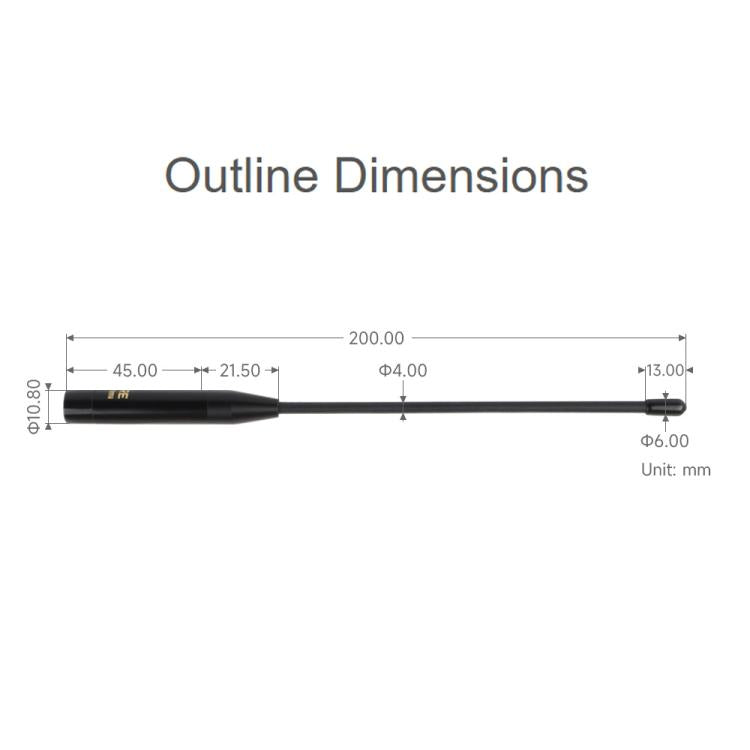

11. Antenna Dimensions: 200mm
