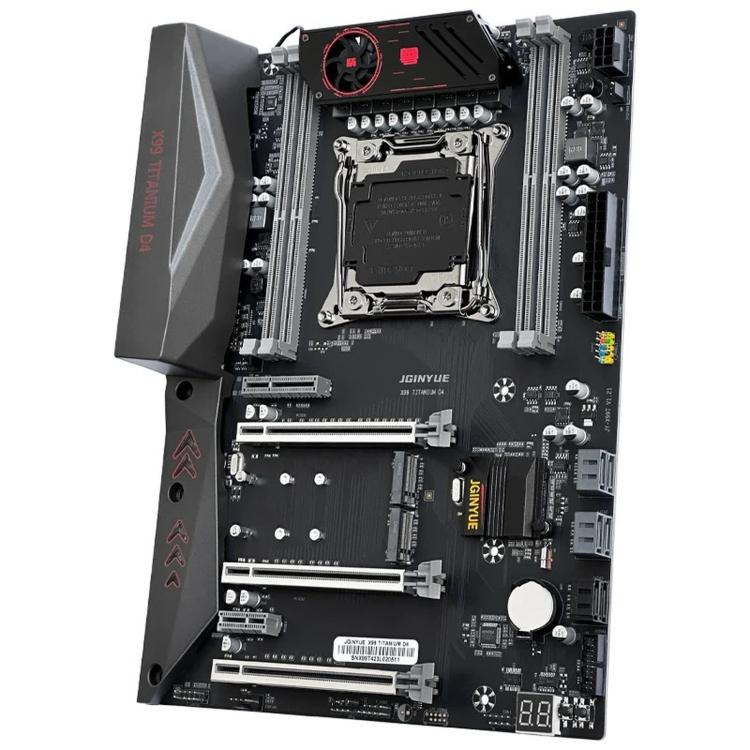

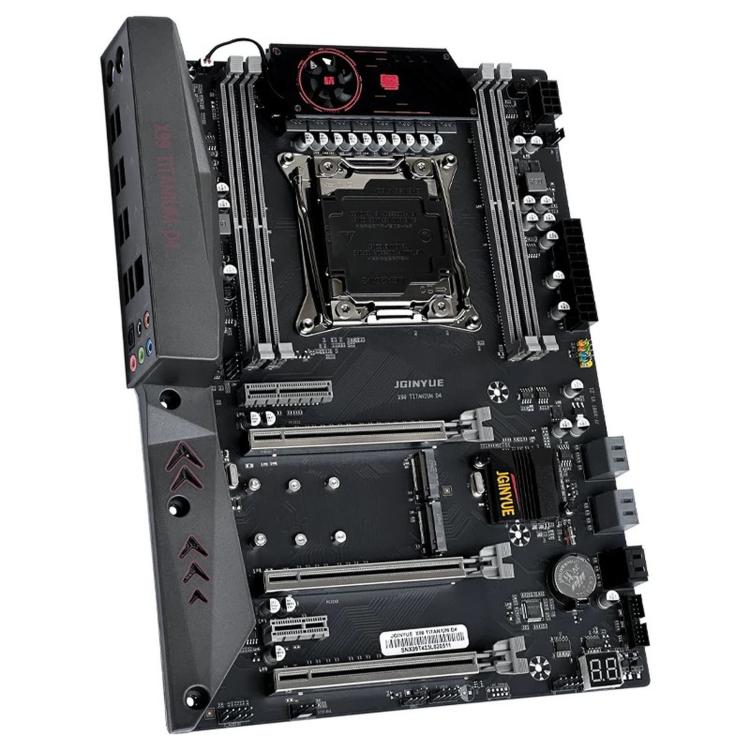

JGINYUE X99 Titanium D4 PLUS LGA 2011-3 ATX Motherboard Quad-Channel DDR4 Mainboard, X99- TI D4 PLUS

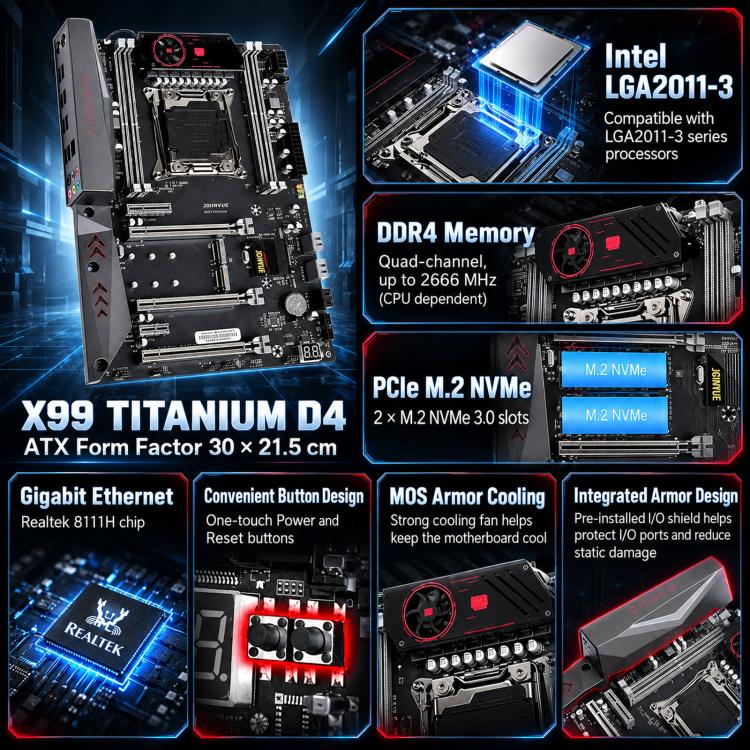

1. Compatible with Intel Xeon E5 v3/v4 series (e.g., E5 2670 v3, E5 2680 v3, E5 2690 v3/v4) and Core i7 LGA 2011-3 processors. Features 4 DDR4 DIMM slots supporting quad-channel architecture up to 128GB total (2133/2400/2666MHz), supporting both standard desktop RAM and ECC/RECC server memory.
2. Equipped with 2 high-speed M.2 PCIe 3.0 NVMe slots for ultra-fast SSD storage performance. Includes 3 PCIe x16 slots (supporting multi-GPU configurations and expansion cards), 1 PCIe x4 slot, 1 PCIe x1 slot, 4 SATA 3.0 ports, and 2 SATA 2.0 ports for versatile storage setup.

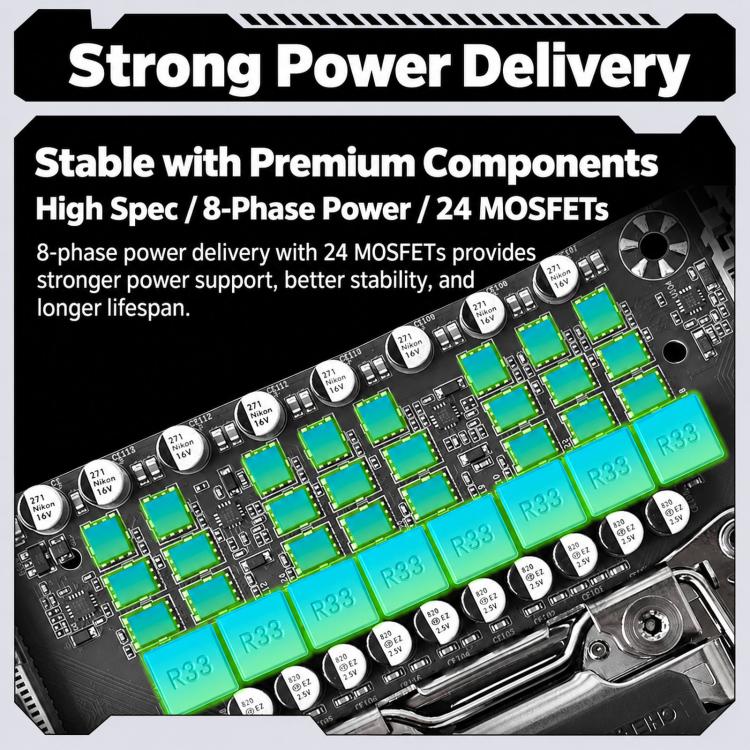

3. Built with a robust 8-phase digital power supply module featuring 24 MOS design and a premium 10-layer PCB structure. Provides stable voltage output, superior signal integrity, and exceptional longevity for heavy workstation and gaming workloads.

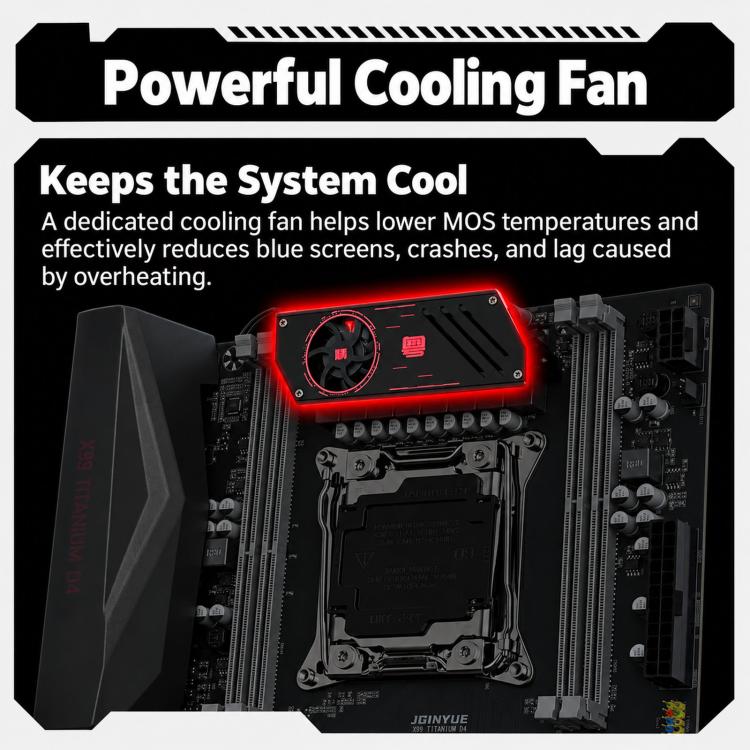

4. Features an active cooling fan built directly into the VRM heatsink module to effectively lower power delivery temperatures. Includes an integrated I/O shield armor plate to protect against static electricity discharge and physical impact.
5. Designed with onboard Power & Reset buttons and a 2-digit diagnostic LED display for effortless troubleshooting. Offers Realtek 8111H Gigabit LAN, 6-channel HD audio with optical output, dual rear USB 3.0 ports, 6 rear USB 2.0 ports, and front USB 3.0/2.0 headers. (Note: Discrete graphics card required for display).

Spec:
1. Processor Type: Supports Intel LGA2011-3 Series Processors
2. Chipset: 8 Series Chipset
3. Memory Slot: 4x DDR4 Quad Channel
4. Memory Standard: Quad Channel 2133/2400/2666MHz
5. Max Memory Capacity: 128GB
6. SATA Interface: 4x SATA3.0, 2x SATA2.0
7. M.2 Interface: 2x M.2 3.0 NVMe Protocol Interfaces

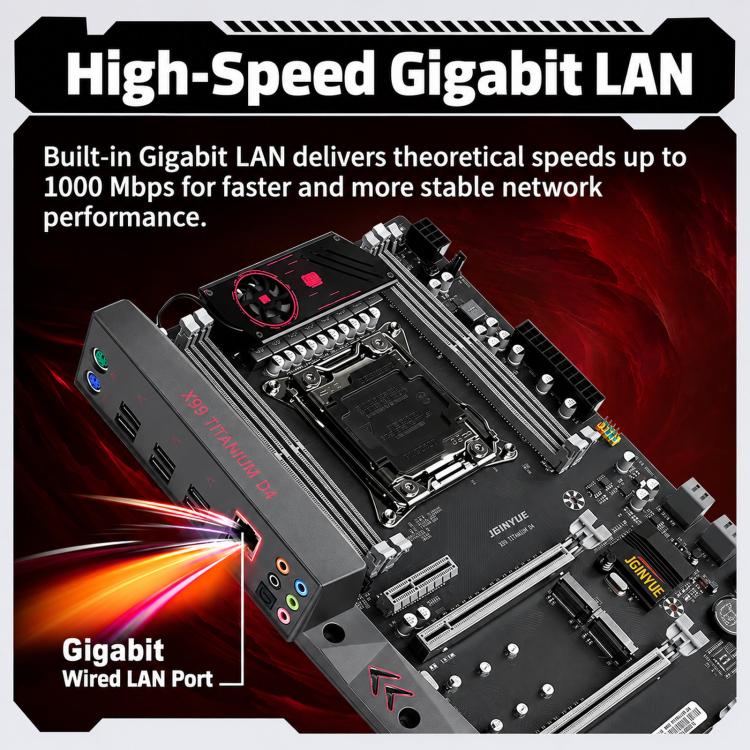

8. Network Type: Realtek 8111H Gigabit Ethernet Chip
9. Audio Chip: Realtek ALC897

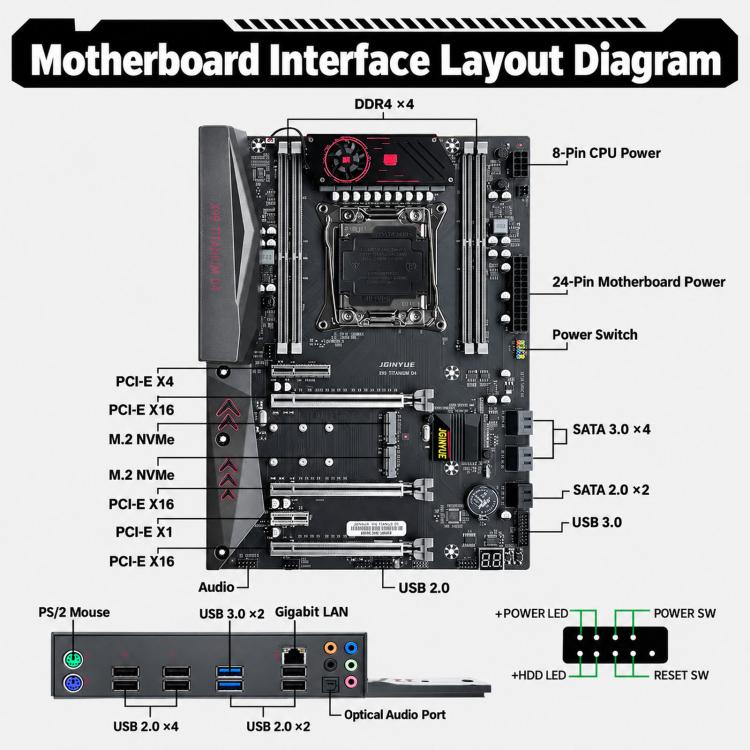

10. USB Interface: 2x USB3.0 Ports, 6x USB 2.0 Ports, 1x USB2.0 Header (Expandable to 2x USB2.0), 1x USB3.0 Header (Expandable to 2x USB3.0)
11. Power Connector: 24pin + 8pin
12. Fan Headers: 2x 4pin Headers, 1x 3pin Header
13. Power Phases: 8 Power Phases with 24 MOS

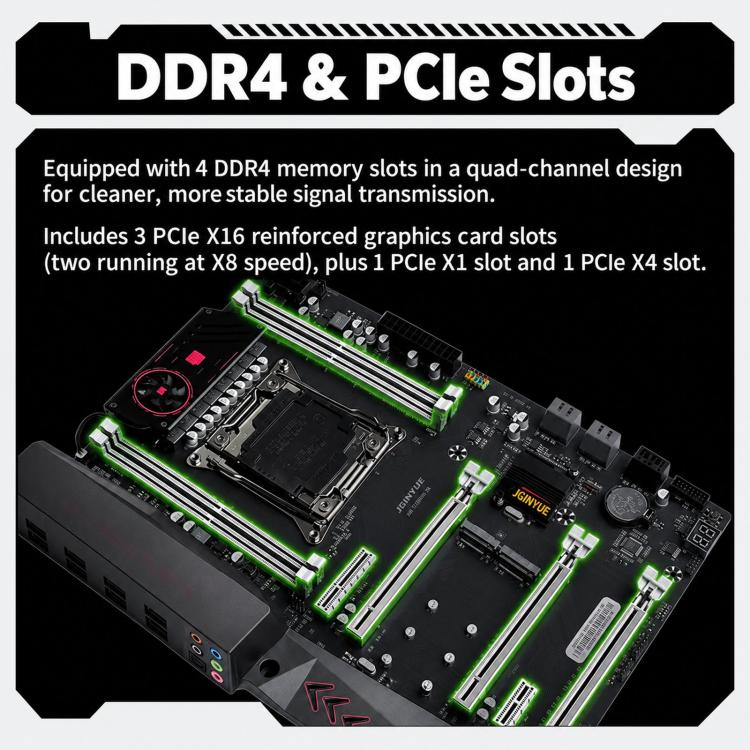

14. Graphics Card Slots: 3x PCI-E X16 (Two of which run at X8 speed), 1x PCI-E X1, 1x PCI-E X4

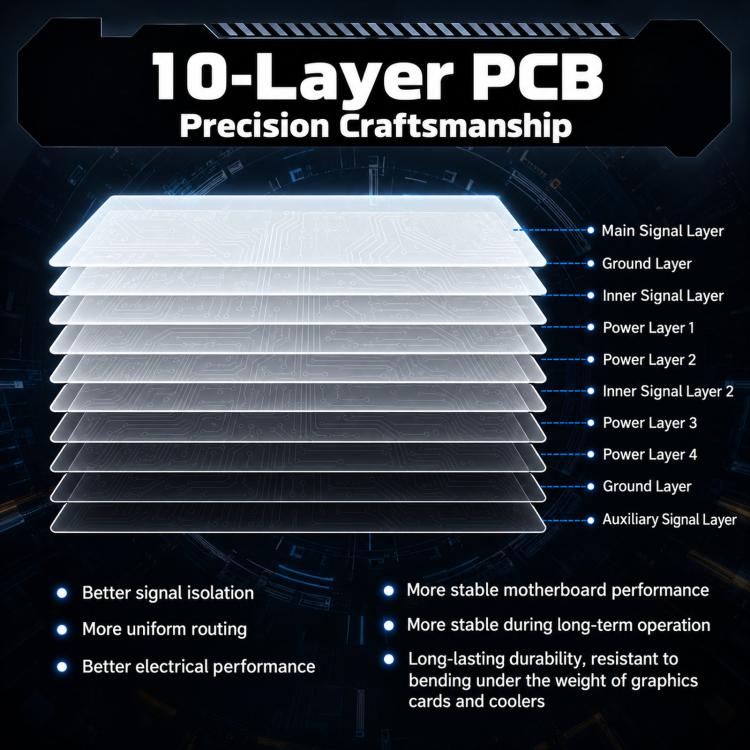

15. PCB Layers: 10-Layer PCB
16. Other Interfaces: PS/2 Keyboard Port, PS/2 Mouse Port, 1x SPK1 Buzzer Header, Onboard Digital Diagnostic Display, 1x Power Button, 1x Reset Button
17. Form Factor: ATX, 30cm x 21.5cm
