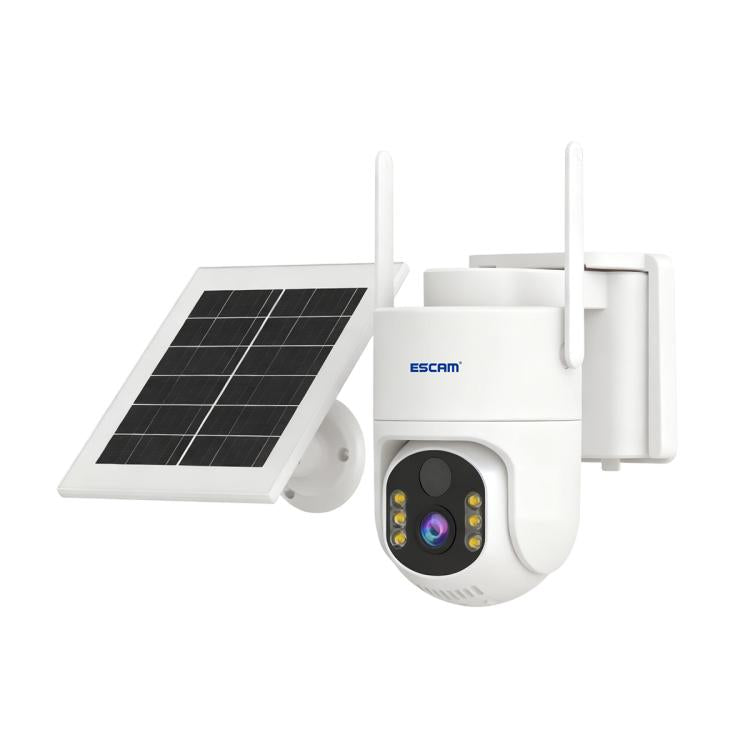

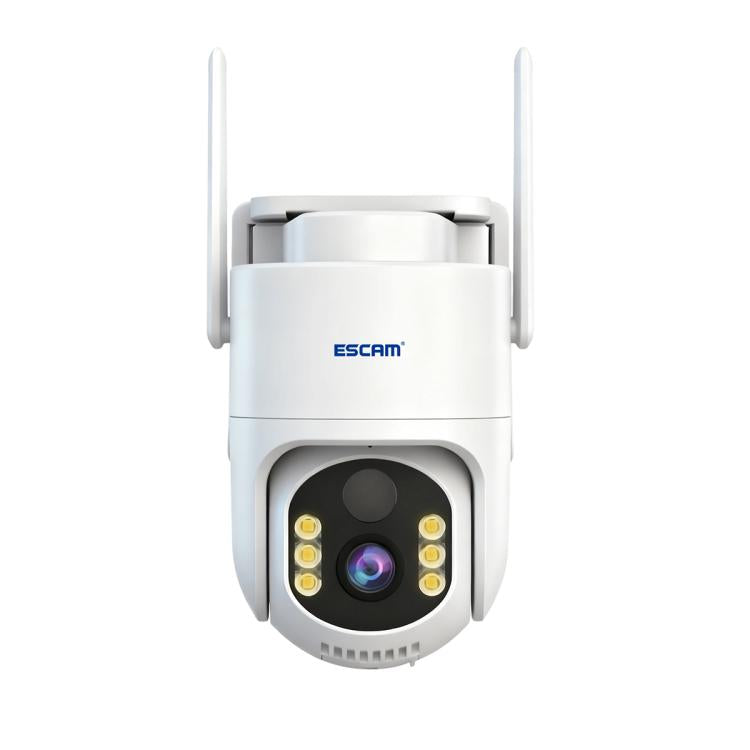

ESCAM QFS71 4G 3MP IP66 Wireless Security Camera System with Solar Panel, European Version, American Version

Feature
1. Build in 4G V-sim card，and one year free 4G connection.
2. The product quickly sleeps and wakes up quickly to achieve intelligent power saving
3. 3 million pixel high-definition image, intelligent dual-light full-color night vision

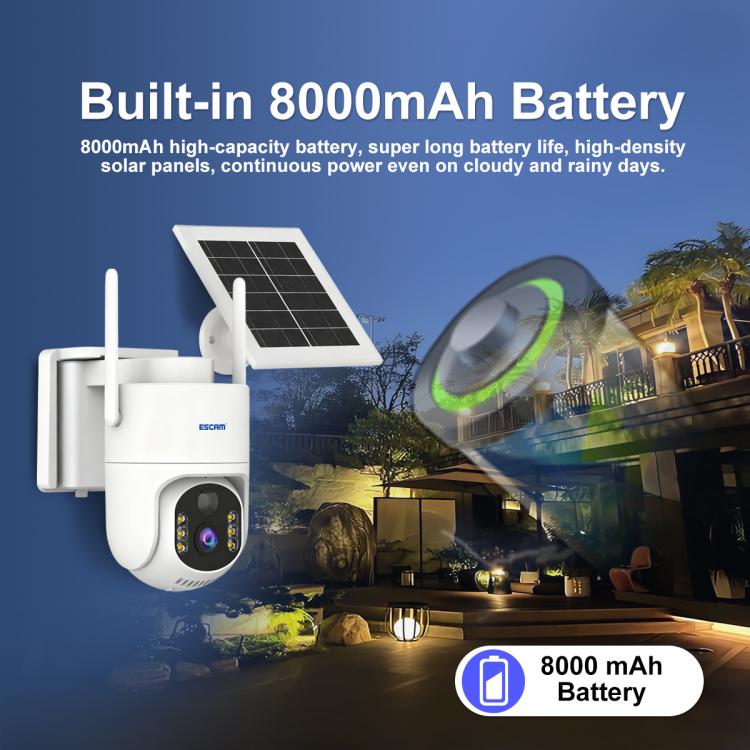

4. Come with 8000mAh battery, continuous charging of removable solar panel, ultra-low power consumption, ultra-long standby
5. Built-in microphone and speaker, support two-way voice intercom
6. Built-in PIR alarm sensor, providing accurate and instant alarm, mobile phone APP push
7. Support app PTZ control, 350 degrees left and right, 90 degrees up and down
8. Support cloud storage and 128G TF card local storage.
9. TUYA Smart app, APP supports Android/IOS
10. 6pcs IR LED, 15meter night version, IP66 outdoor protection
11. Support 4G（TD-LTE,TD-LTE / LTE FDD，TD-LTE / LTE-FDD）
12. The app language follows the language of phone.

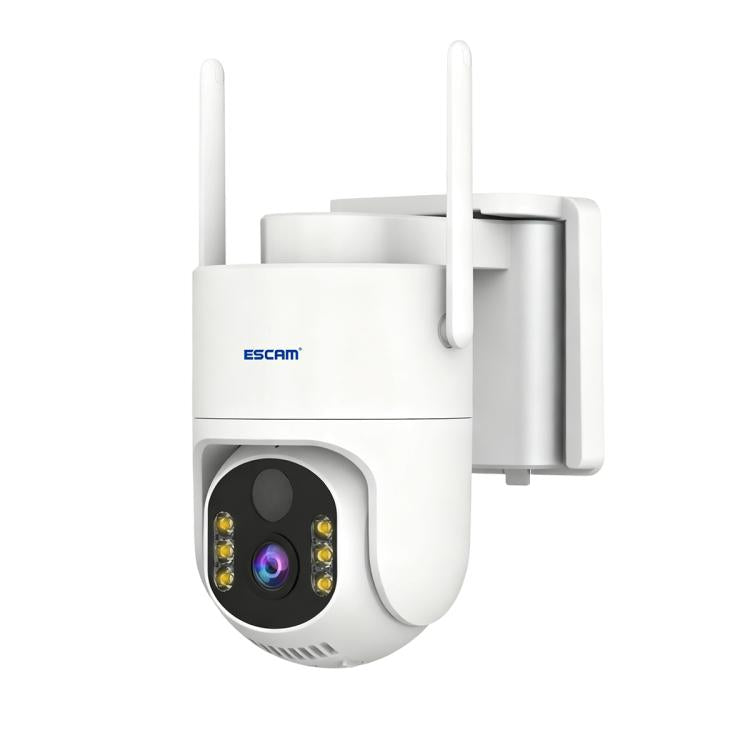

Camera Specification:

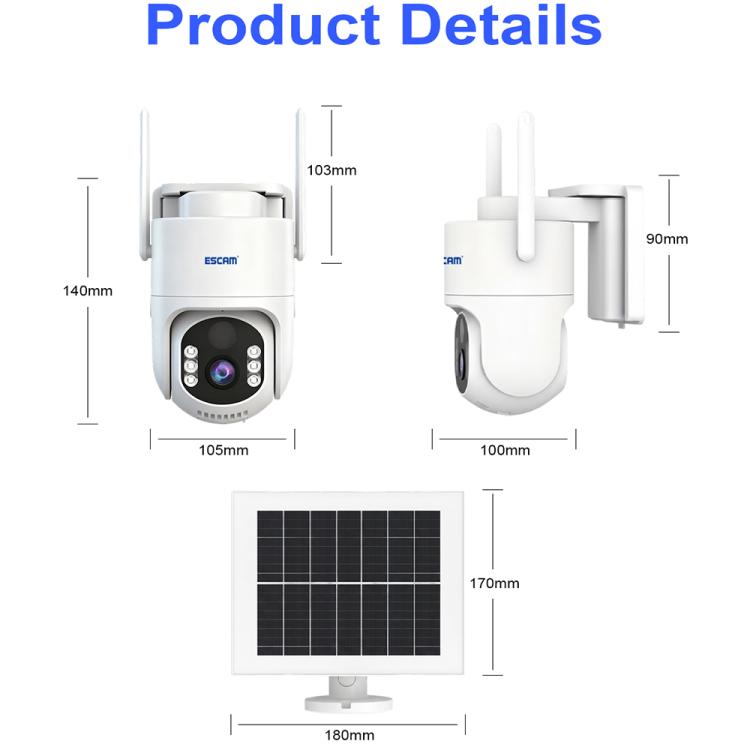

1. Dimension: 117x158.3x174.5mm
2. Weight: 708g
3. Power Cable Length: 0.5M
4. Housing Material: ABS
5. Hosing Flame Retardance: V-0

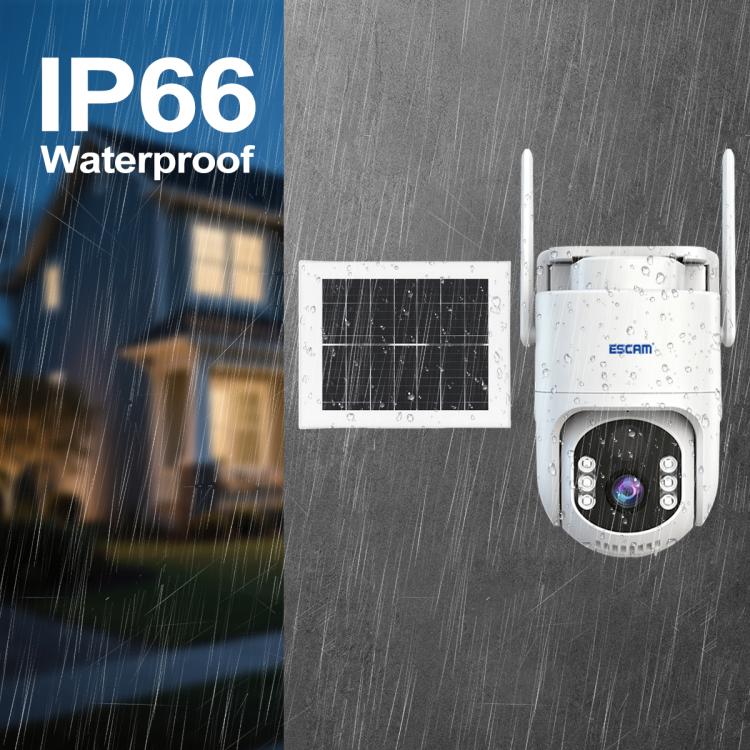

6. Ingress Protection(IP): IP66

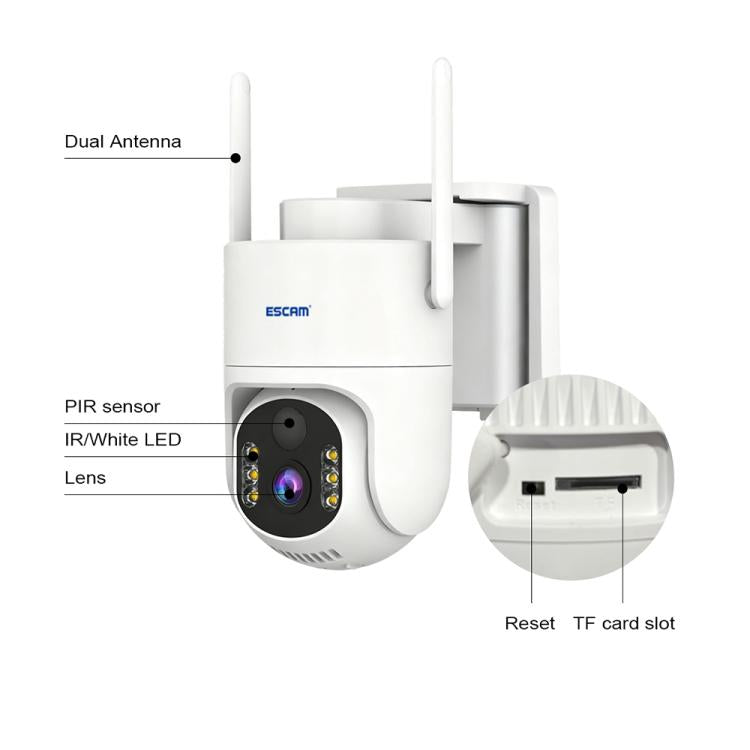

Hardware Specification:
1. Image Sensor: 1/3 inch 3Megapixel progressive CMOS
2. Sensor Brand And Model: SMARTSENS, SC2337p
3. Main Chipset Brand And Model: INGENIC, T31ZL
4. 4G Module Brand And Model: YUGA CLM920
5. Lens Brand And Model: YT12001+AHN0760
6. lens Focal Length: 4mm
7. Aperture: F2.0
8. Antenna Gain (dBi): 3dB

Electrical Specification:
1. Power Supply: lithium battery pack
2. Standby Power Consumption: 4.8MW
3. Working Power Consumption: 880MW
4. Live Stream Video Resolution: 3MP HD(2304x1296) / SD(640x360)
5. Notification Image Resolution: SD(640x360)
6. Angle of View(H/V/D): H 52.3 degree / V 28.4 degree / D60.7 degree
7. Angle of Pan and Tilt: H 350 degree / V90 degree
8. Microphone Sensitive: -38dB
9. Noise Reduction: 3D NR
10. Audio Input: Built in Mic
11. Audio Output: Built in 8 Ohm1.5W Speaker
12. Audio Compression: G711U
13. Video Compression: H.264 / H.265
14. Frame Rate: Main streaming 1024Kbps / Sub streaming 256Kbps

Lighting Specification:
1. IR CUT: Support
2. IR On/Off Control: Auto / Manual
3. IR Distance: 15m (49ft)
4. Night Vision Mode: Infrared mode & Color mode
5. Number of Infrared Light: 6 pcs
6. Number of White Light: 6 pcs
7. Indicator Color Status:
a. Solid red: not connected to base station, no SIM card inserted, or no data traffic
b. Flashing blue: connected to 4G network but not configured
c. Solid blue: connected to server
d. Both red and blue light up (purple): Firmware upgrade in progress
e. All off: powered off or in sleep mode


Network and Condition:
1. Wireless Standard: LTE-FDD
2. Wireless Frequency: North America Cat1: CLM920-HE9 NA:(B2, 4, 5, 12, 13, 17, 66), European and Australian version: CLM920-HE9 EU Cat1(B1, 3, 7, 8, 20，28)
3. Working Temperature: -10 ~ 50 degree Celsius
4. Working Humidity: 20%-85%RH (no condensation)

Basic Specification:
1. Support Two-way Talk / Motion Detection / Area Monitoring Detection / Humanoid Body Filtering / Trigger Siren / WebRTC / Siren / Anti Flicker / Hot Swappable SD Card
2. Voice Solution Configuration: Amazon Alexa, Google Assistant
3. Local Storage SD Slot: Micro SD Slot (up to 128GB)

Battery:
1. Battery Type: 4 x 18650Rechargeable Lithium Battery (Low temperature resistant)
2. Battery Capacity: 8000mAh
3. Battery Charging Time (Input DC 5V1A): 18 hours
4. Battery Life: 2 months (triggered 10 times per day)

Solar Panel:
1. Dimension: 183x168x15mm
2. Weight: 316g
3. Power Cord Length: 2 meters
4. Shell Material: ABS
5. Craftsmanship: Glass + EVA + Monocrystalline silicon solar cell + EVA + PTP backsheet
6. Output Power: 5w
7. Energy Conversion Rate: more than 21%
8. Charging time for the camera: Charging from 0% to 100% costs 8-10 days, depending on sunlight conditions
9. Working Temperature: -20 ~ 55 degree Celsius
10. Working Humidity: 60%RH

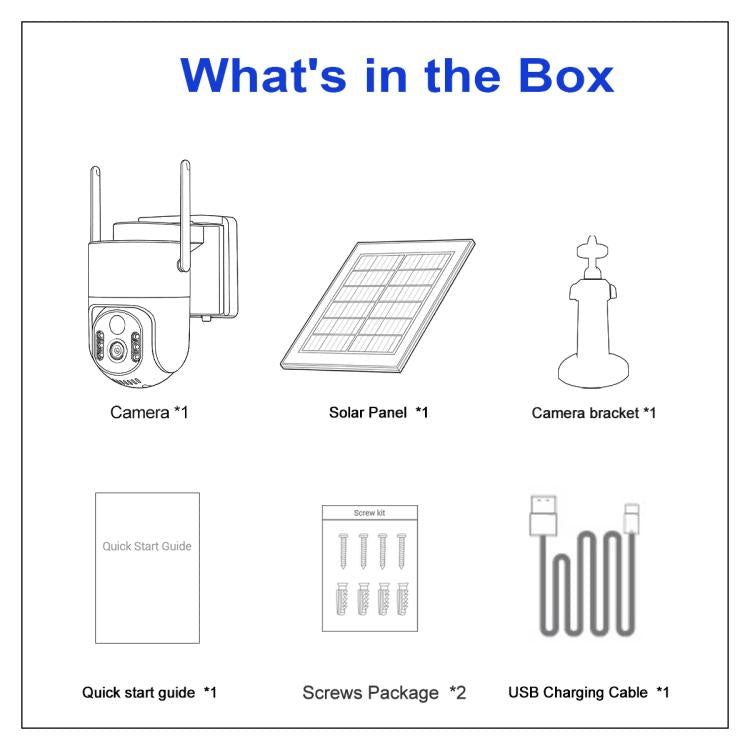

Package List:
1. Intelligent camera x 1
2. Solar panel x 1
3. Solar panel installation bracket x 1
4. Smart camera wall mount bracket x 1
5. Screw package x 2
6. Charging cable x 1
7. Positioning stickers x 2
8. Quick Installation Guide x 1
